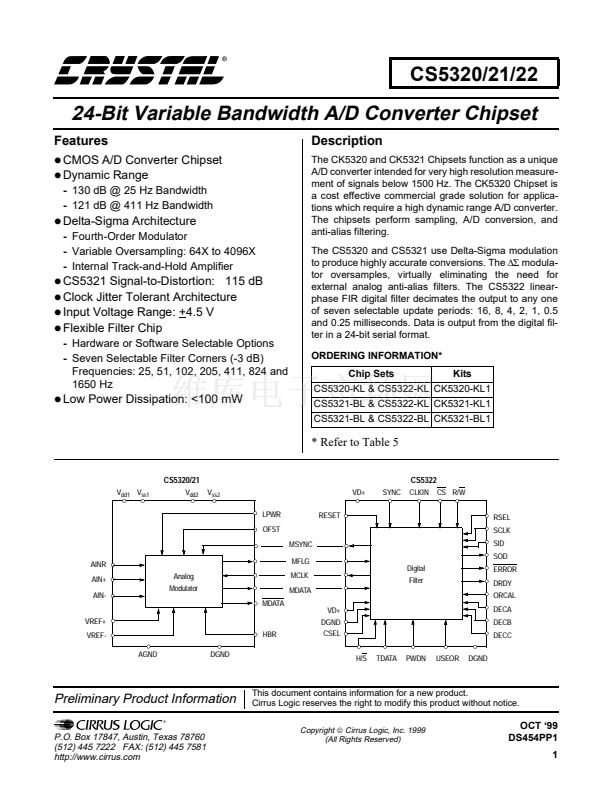

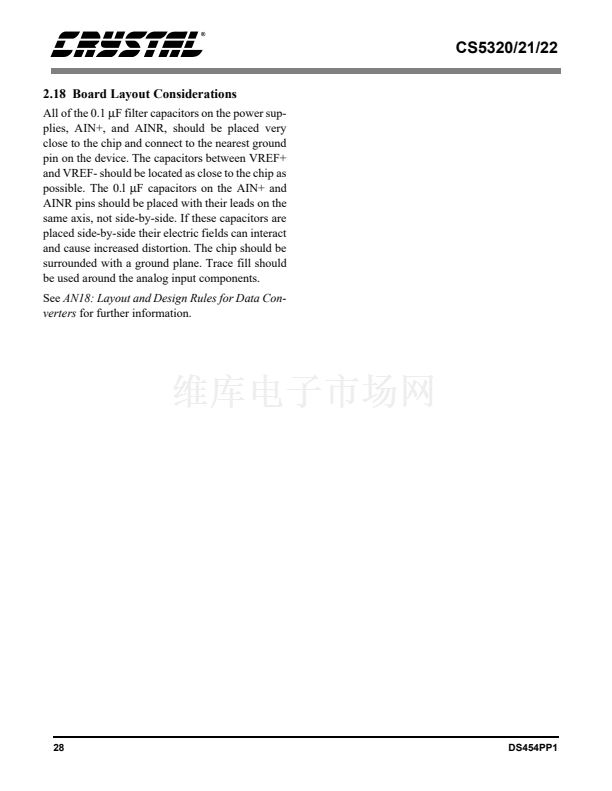

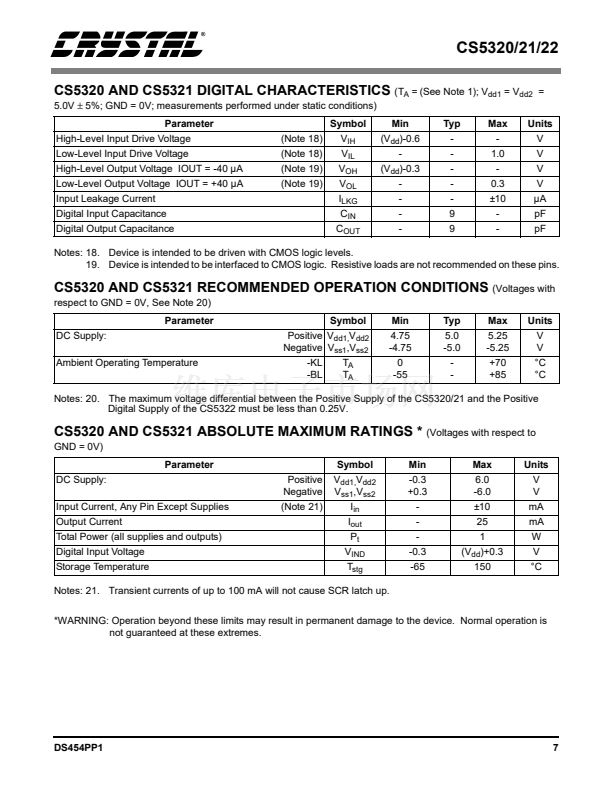

CS5320/21/22

24-Bit Variable Bandwidth A/D Converter Chipset

Features

CMOS

Description

The CK5320 and CK5321 Chipsets function as a unique

A/D converter intended for very high resolution measure-

ment of signals below 1500 Hz. The CK5320 Chipset is

a cost effective commercial grade solution for applica-

tions which require a high dynamic range A/D converter.

The chipsets perform sampling, A/D conversion, and

anti-alias filtering.

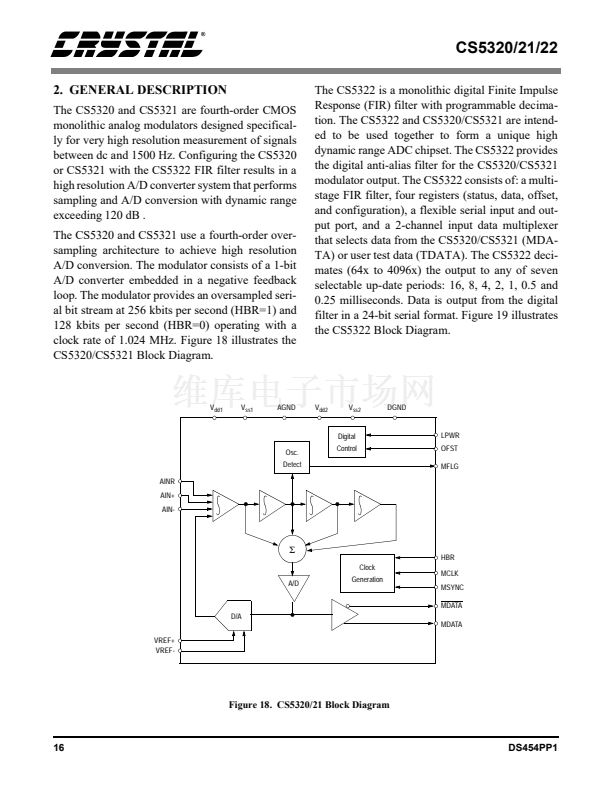

The CS5320 and CS5321 use Delta-Sigma modulation

to produce highly accurate conversions. The

鈭單?/div>

modula-

tor oversamples, virtually eliminating the need for

external analog anti-alias filters. The CS5322 linear-

phase FIR digital filter decimates the output to any one

of seven selectable update periods: 16, 8, 4, 2, 1, 0.5

and 0.25 milliseconds. Data is output from the digital fil-

ter in a 24-bit serial format.

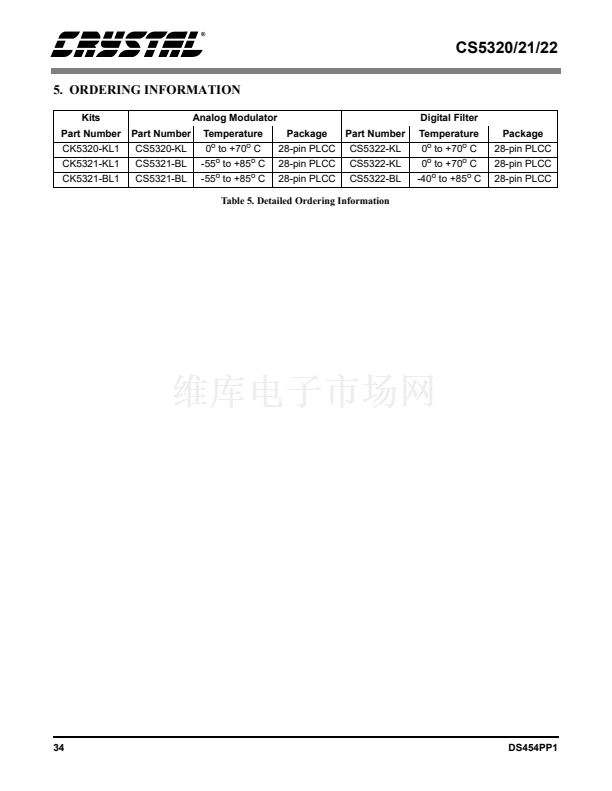

ORDERING INFORMATION*

Chip Sets

Kits

CS5320-KL & CS5322-KL CK5320-KL1

CS5321-BL & CS5322-KL CK5321-KL1

CS5321-BL & CS5322-BL CK5321-BL1

A/D Converter Chipset

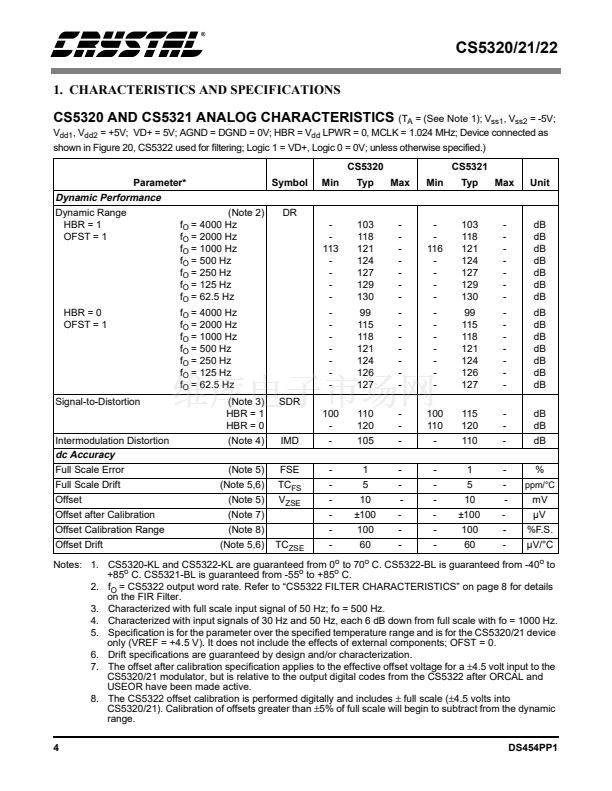

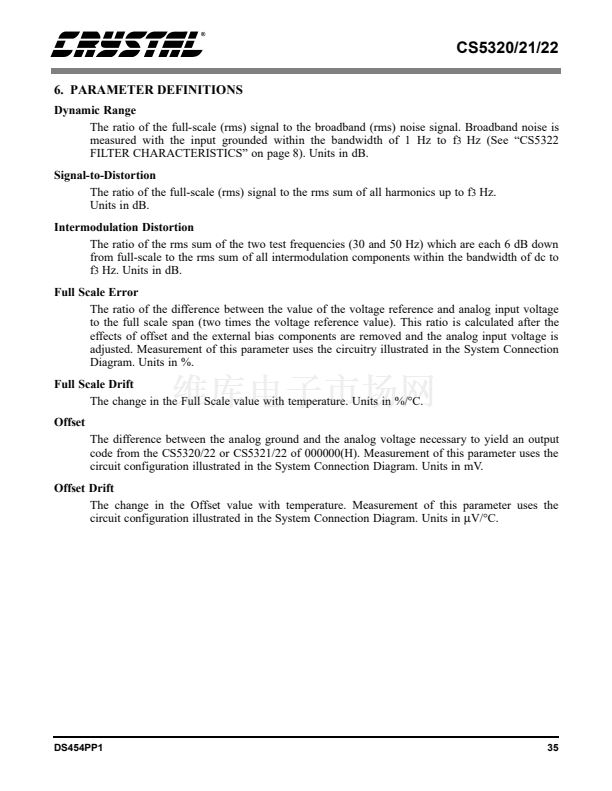

Dynamic Range

130 dB @ 25 Hz Bandwidth

121 dB @ 411 Hz Bandwidth

Delta-Sigma

Architecture

Fourth-Order Modulator

Variable Oversampling: 64X to 4096X

Internal Track-and-Hold Amplifier

CS5321

Signal-to-Distortion: 115 dB

Clock Jitter Tolerant Architecture

Input Voltage Range: +4.5 V

Flexible Filter Chip

Hardware or Software Selectable Options

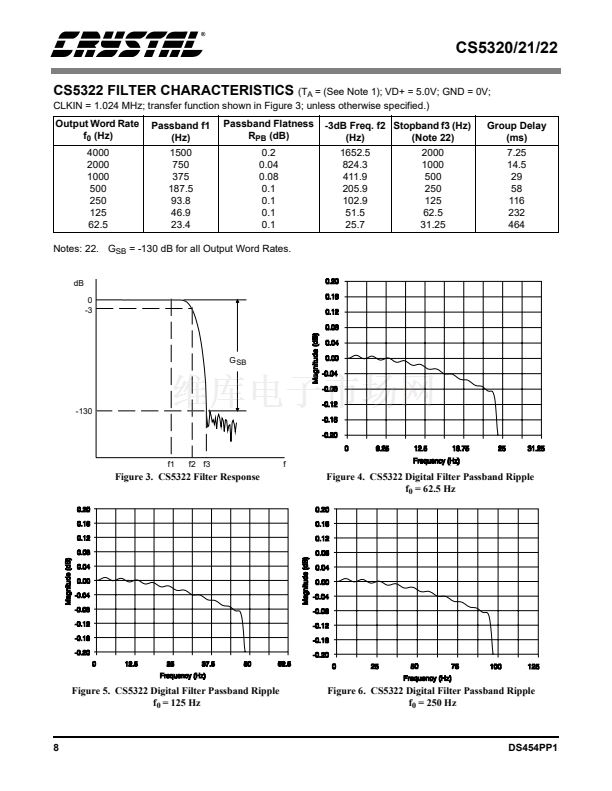

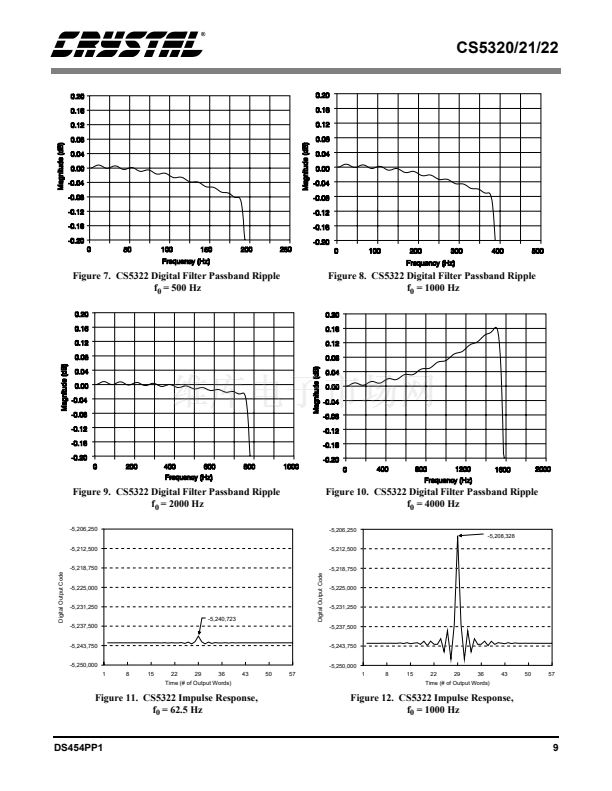

Seven Selectable Filter Corners (-3 dB)

Frequencies: 25, 51, 102, 205, 411, 824 and

1650 Hz

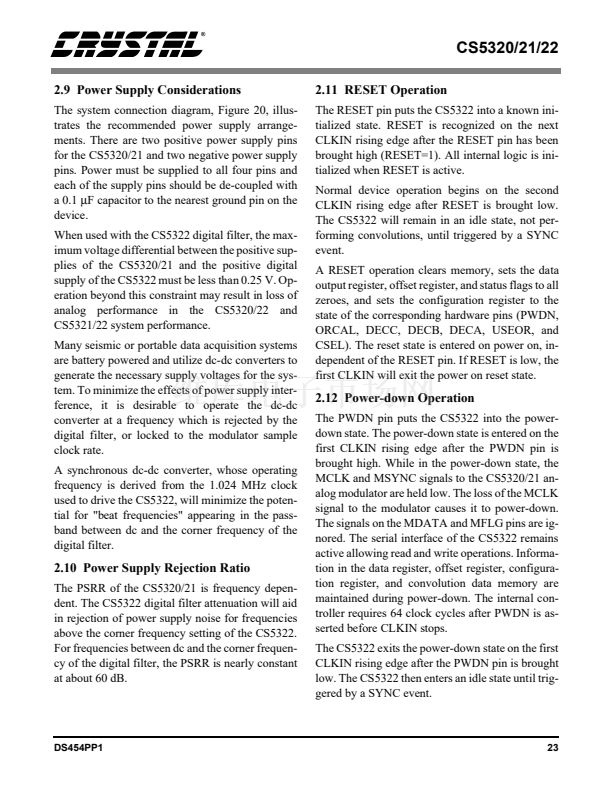

Low

Power Dissipation: <100 mW

* Refer to Table 5

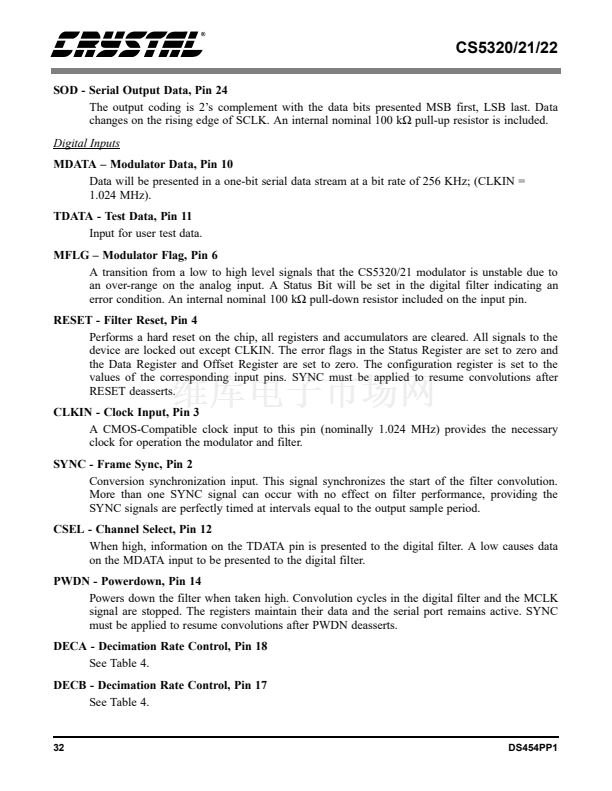

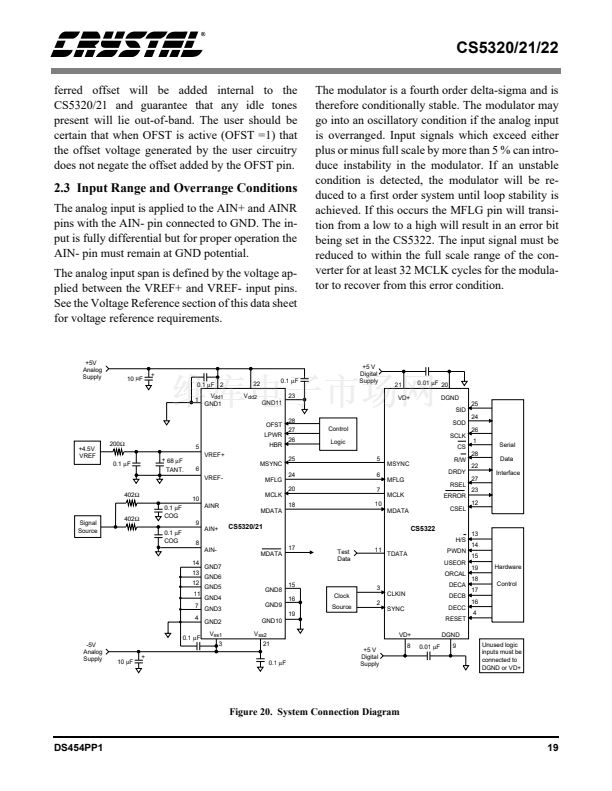

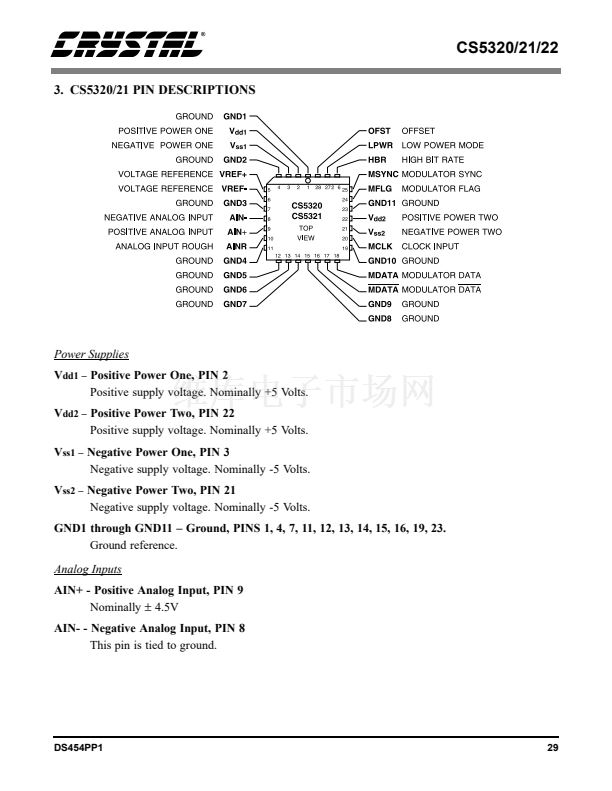

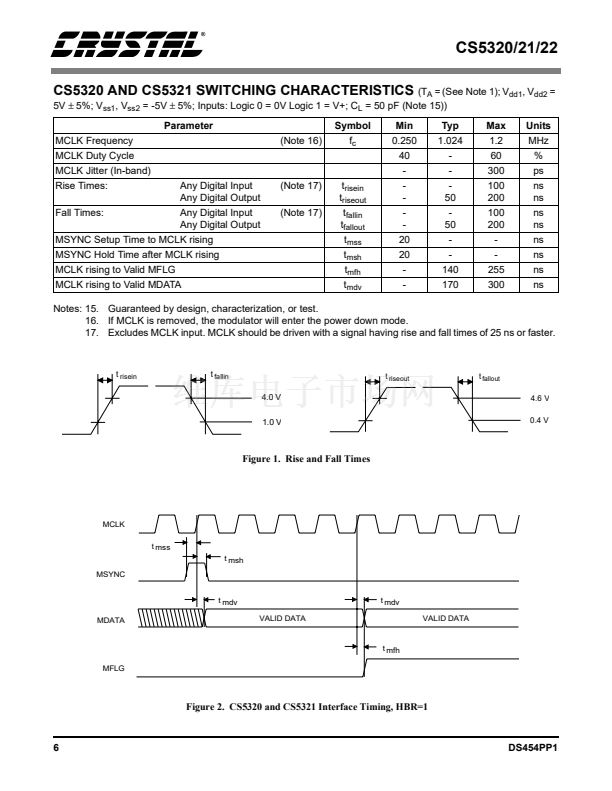

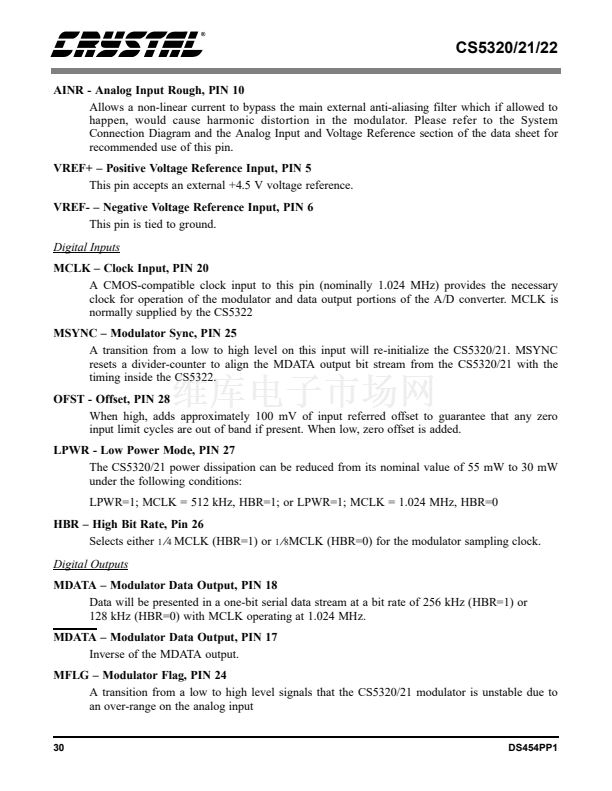

CS5320/21

dd1

ss1

dd2

ss2

LPWR

OFST

MSYNC

AINR

AIN+

AIN-

MDATA

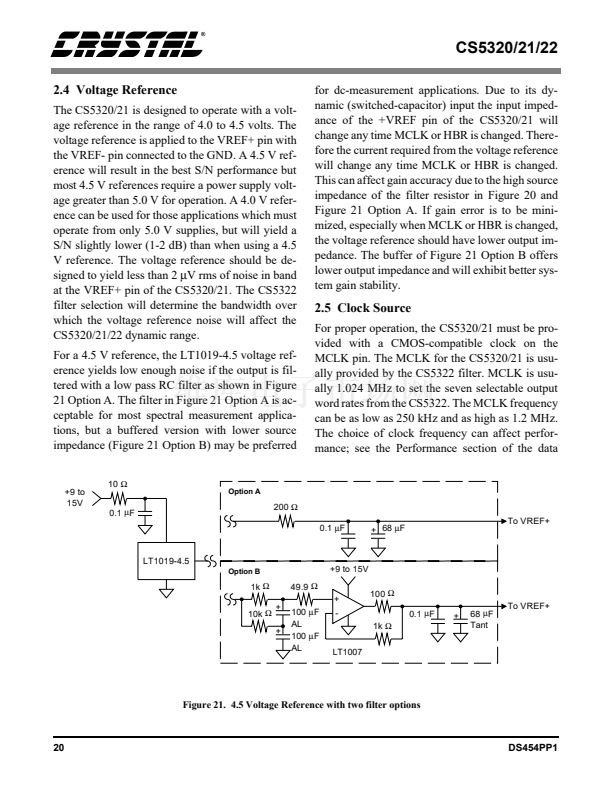

VREF+

VREF-

AGND

DGND

HBR

VD+

DGND

CSEL

H/S

TDATA

PWDN

USEOR

DGND

Analog

Modulator

MFLG

MCLK

MDATA

Digital

Filter

RESET

VD+

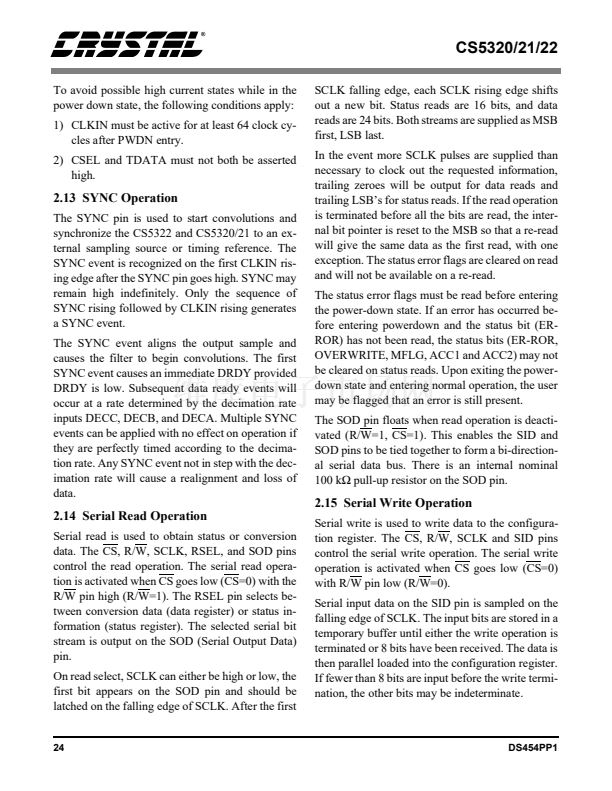

SYNC

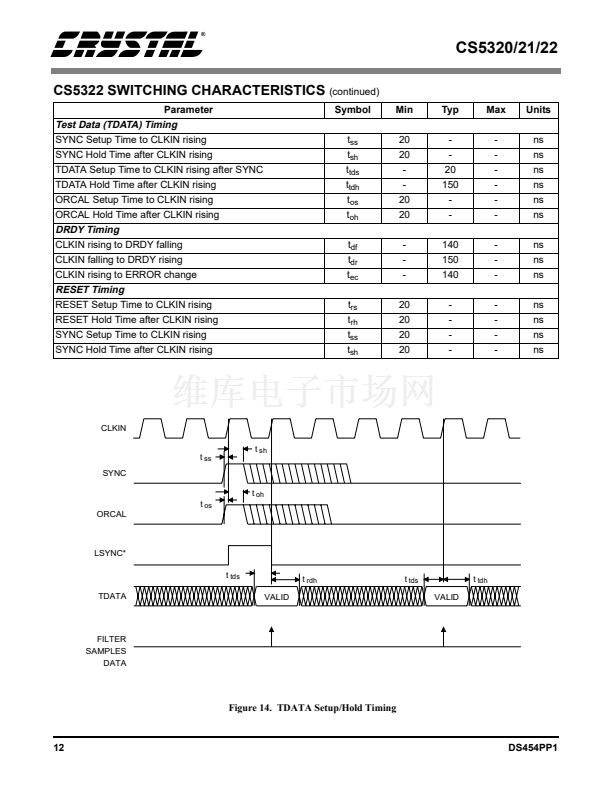

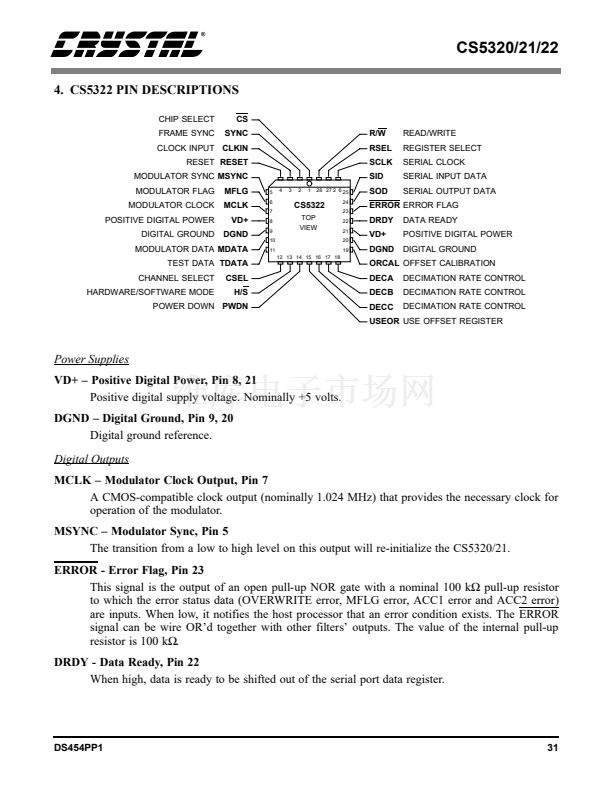

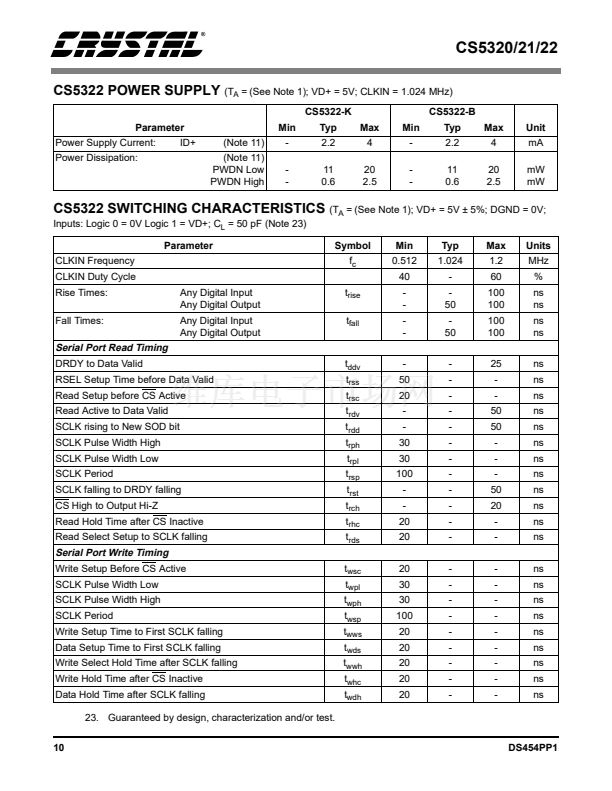

CS5322

CLKIN

CS R/W

RSEL

SCLK

SID

SOD

ERROR

DRDY

ORCAL

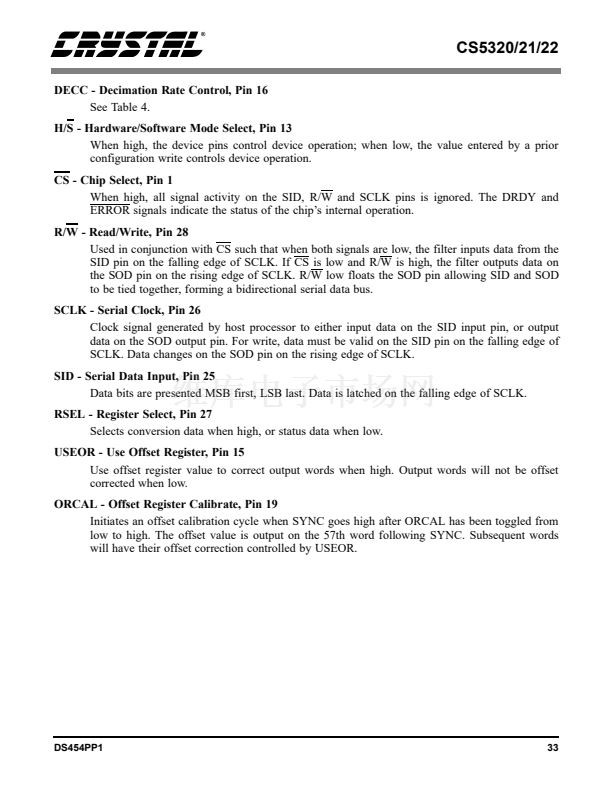

DECA

DECB

DECC

Preliminary Product Information

P.O. Box 17847, Austin, Texas 78760

(512) 445 7222 FAX: (512) 445 7581

http://www.cirrus.com

This document contains information for a new product.

Cirrus Logic reserves the right to modify this product without notice.

漏

Cirrus Logic, Inc. 1999

OCT 鈥?9

DS454PP1
